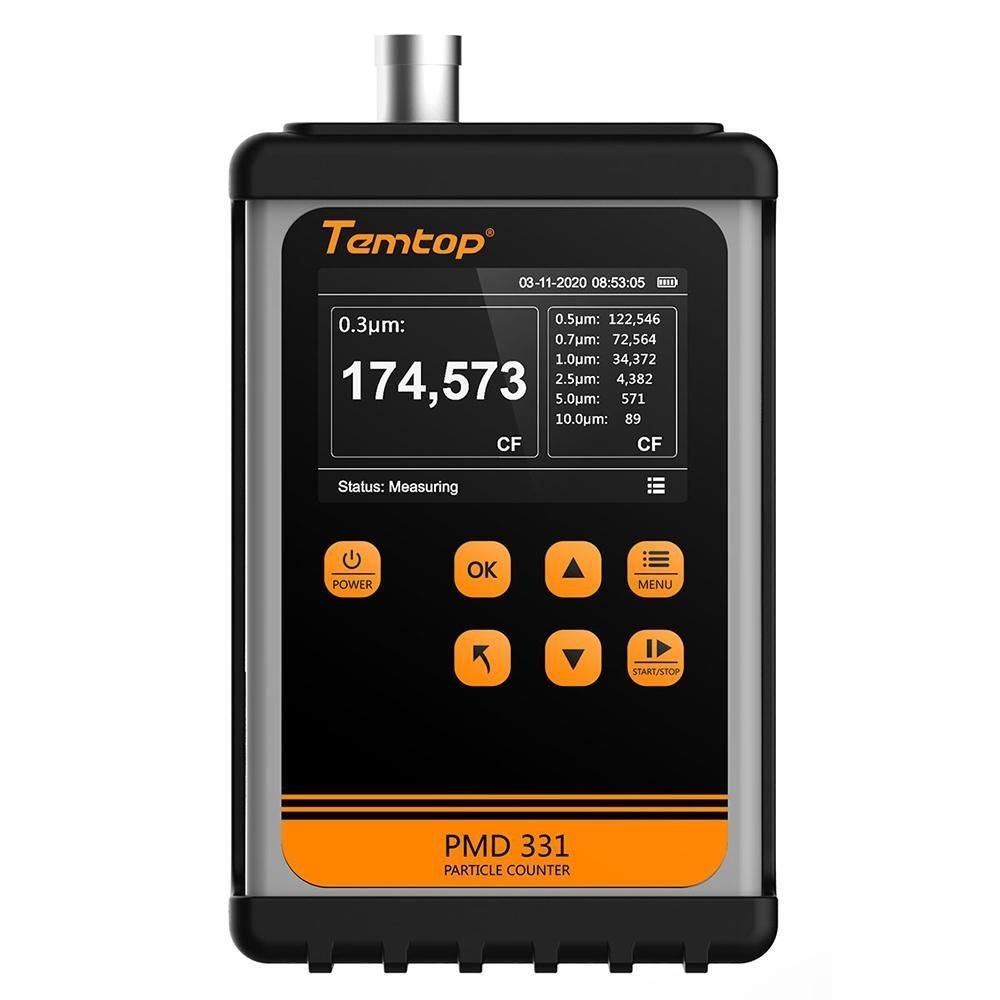

Temtop PMD 331 Aerosol Monitor Handheld Particle Counter Dust Monitor, Seven Channels For Outputs The Number of 0.3um, 0.5um,0.7um, 1.0um, 2.5um, 5.0um, 10.0um Particles.
Click to zoom in

Temtop PMD 331 Aerosol Monitor Handheld Particle Counter Dust Monitor, Seven Channels For Outputs The Number of 0.3um, 0.5um,0.7um, 1.0um, 2.5um, 5.0um, 10.0um Particles.

2 sold in last 8 hours
PMD 331

PMD 331 is a small, light, and battery-powered particle counter with seven channels for outputs the number of 0.3um, 0.5um,0.7um, 1.0um, 2.5um, 5.0um, 10.0um particles.

With a large display screen and seven buttons for operation,the monitor is simple and efficient,...

customers are viewing this product

PMD 331 is a small, light, and battery-powered particle counter with seven channels for outputs the number of 0.3um, 0.5um,0.7um, 1.0um, 2.5um, 5.0um, 10.0um particles.

With a large display screen and seven buttons for operation,the monitor is simple and efficient, suitable for fast detection in multiple scenarios. The internal high-performance lithium battery allows the monitor to run continuously for 8 hours. PMD 331 also has a built-in 8GB large-capacity storage and supports two communication modes: USB andRS-232.The detected data can be viewed directly on the screen or exported through the USB port for analysis.

Temtop PMD 331 Parameter

Item Parameter
Particle Diameter 0.3, 0.5, 0.7, 1.0, 2.5, 5.0, 10.0um
Measure Range 3,000,000 CF
Accuracy ±10%
Principle Light scattering technique
Light Source 50mW, 780nm
Sampling Time 3~60 s
Flow 2.83 L/min
Display 4.0" TFT LCD screen
Communication USB /RS-232
Memory 2,000,000 reading
Battery Rechargeable lithium battery
Charing Time 3.5h
Operating Time 8h
Operating Temperature 0~50 ℃
Storage Temperature -20~60 ℃
Monitor Dimension 170×110×48 mm
Weight 850g


Temtop PMD 331 Package

  • PMD 331 & PU Protective Case
  • Battery Charge
  • RS-232 Series Converter Cable
  • AC Power Cord
  • Filter Tube
  • PMD 331 User Manual
  • Carrying Case
  • USB Flash Drive

Temtop PMD 331Related Documents
